Cable Storage Assembly

Cable Storage Assembly

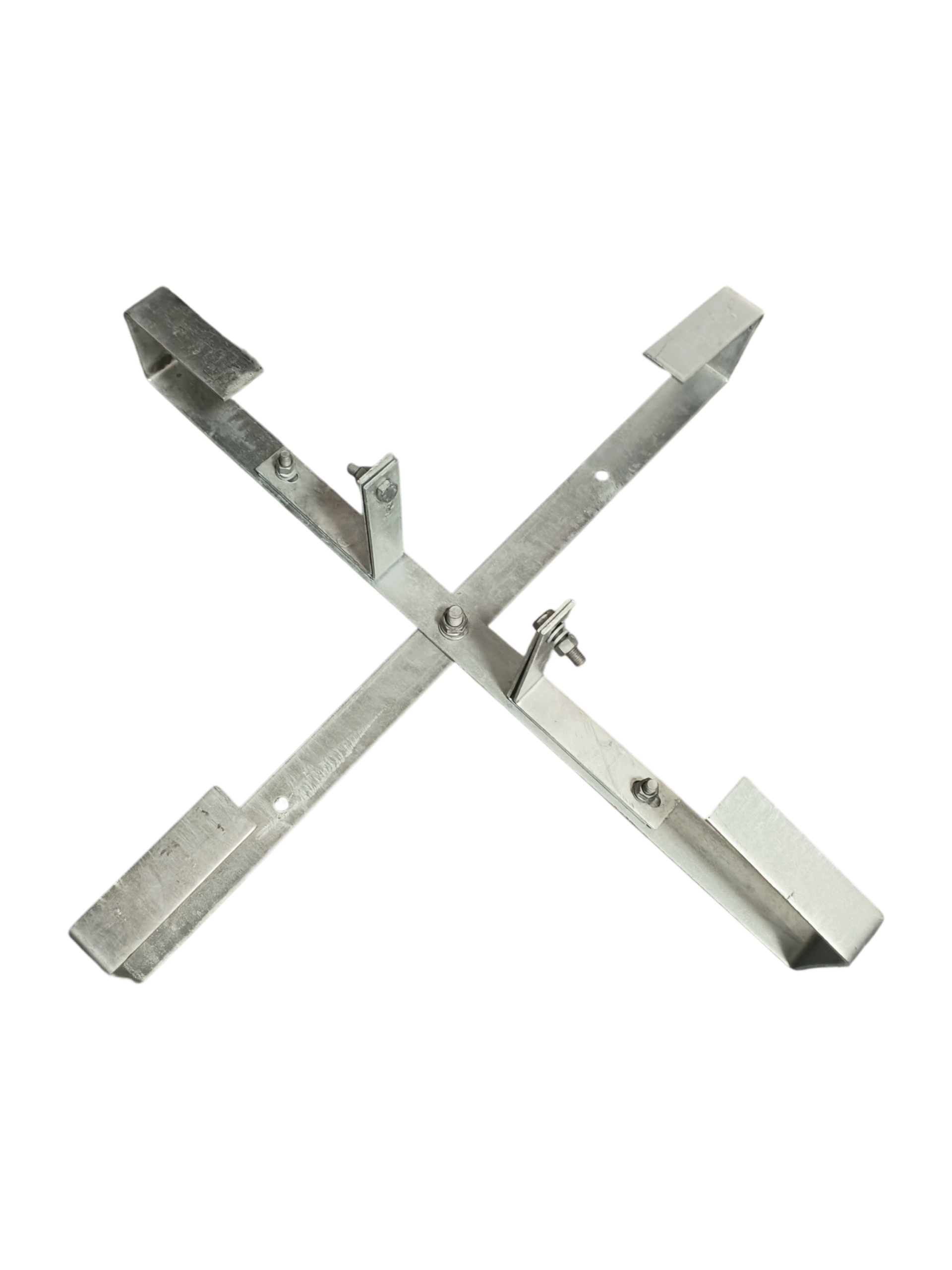

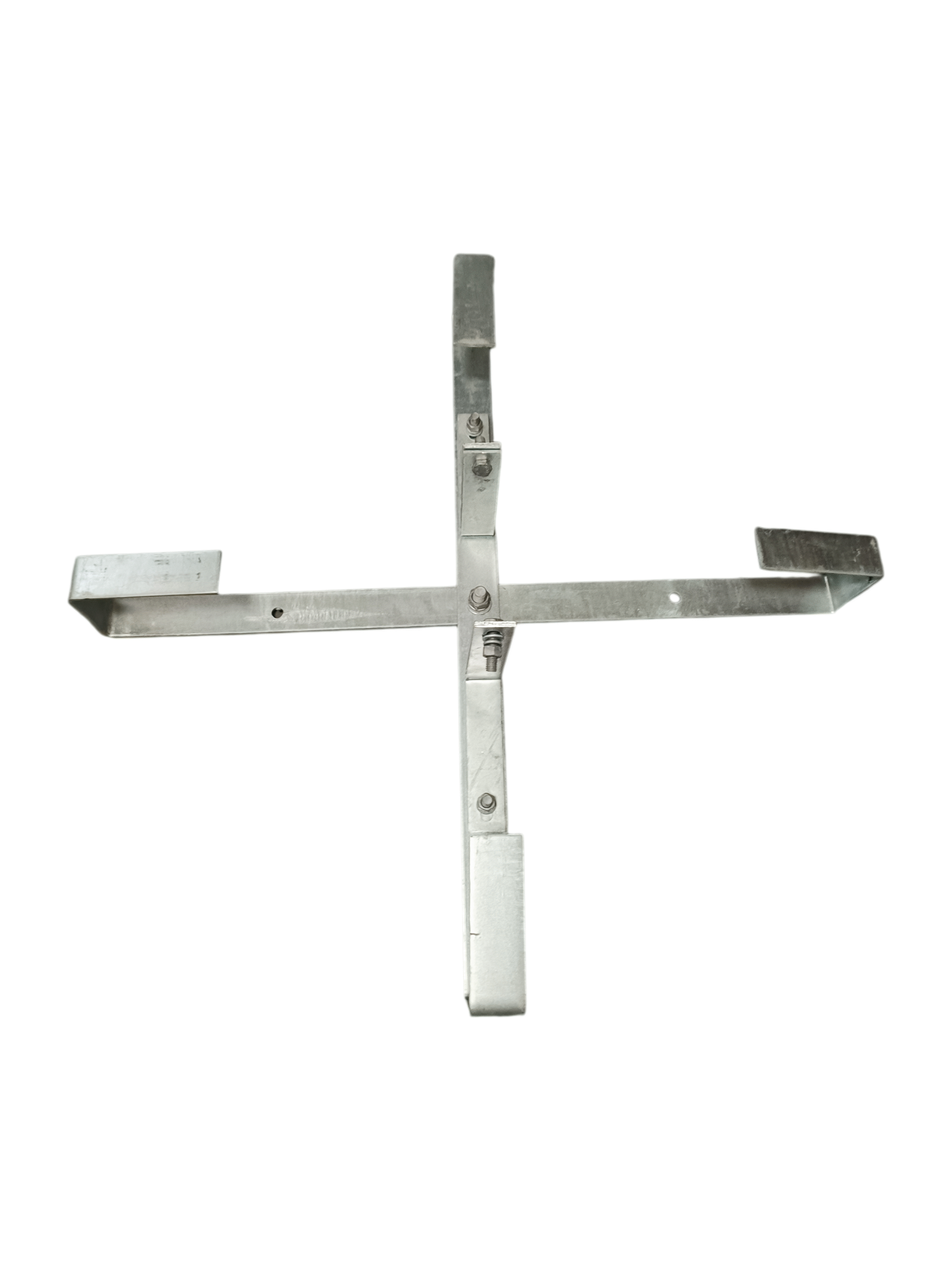

The surplus cable rack is a specialized device used in communications, electric power, and other fields to store and protect the excess parts of cables. It is mainly made of metals or high-strength plastics, consisting of a bracket body, cable fixing devices, and a mounting base, with different sizes suitable for both indoor and outdoor scenarios. Its core functions include storing redundant cables reserved during laying to keep the layout neat, reducing damage to cables from external environments or human factors to extend their service life, facilitating the access of surplus cables during later maintenance, and complying with industry standards to ensure the safe and stable operation of lines. It is an indispensable auxiliary equipment in cable engineering.

Ask For a Quote
Send E-mail
60s online customer service
2 days customize solutions
Factory visiting anytime
1-10 days dispatch the goods
One week of installation
2 days of training
365 days after-sales online
Project tracking regularly
2 days provide maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Specification

Products Name Model Dimension Collocation Suitable Cable Range
L(mm) Weight(kg)
Cable storage Assembly TJY 660-T 660 4.1 Small Splint Suitable for ADSS optical cables

Cable Dia≦14.8
TJY 1000-T 1000 7.7 Small Splint ADSS Cable Dia﹥14.8

OPGW Cable Dia≦14.8
TJY 1200-T 1200 11.8 Small Splint OPGW Cable Dia﹥14.8
Cable storage Assembly TJY 660-H* 600 4.1 Support for Pole ADSS Cable Dia≦14.8
TJY 1000-H* 1000 7.7 Support for Pole ADSS Cable Dia﹥14.8

OPGW Cable Dia≦14.8
TJY 1200-D* 1200 11.8 Elbow Hoop OPGW Cable Dia﹥14.8





Name Model Pole Dia.(mm) Weight(kg) Material
Support for Pole TJY-H1 150-310 0.48 Stainless Steel Strip
Support for Pole TJY-H2 311-460 0.52
Support for Pole TJY-H3 461-600 0.57
Support for Pole TJY-H4 601-800 0.62
Support for Pole TJY-H5 801-1000 0.72





Name Model Angle Iron Dimension

For Iron Tower(mm)

 Weight(kg) Material
Small Splint TJB-70 ≤70 1.02 Hot-Dip Galvanized Steel
Small Splint TJB-100 71-100 1.22
Small Splint TJB-150 101-150 1.61





name Model Suitable Range(mm) Weight(kg) material Failing Load(kN)
Elbow Hoop TGQ 175 070 151-175 2.7 Galvanized Steel 70
Elbow Hoop TGQ 200 070 176-200 2.9 Galvanized Steel 70
Elbow Hoop TGQ 225 070 201-225 3.2 Galvanized Steel 70
Elbow Hoop TGQ 250 070 226-250 3.4 Galvanized Steel 70
Elbow Hoop TGQ 275 070 251-275 3.6 Galvanized Steel 70
Elbow Hoop TGQ 300 070 276-300 3.8 Galvanized Steel 70
Elbow Hoop TGQ 325 070 301-325 4.0 Galvanized Steel 70
Elbow Hoop TGQ 350 070 326-350 4.3 Galvanized Steel 70
Elbow Hoop TGQ 375 070 351-375 4.5 Galvanized Steel 70
Elbow Hoop TGQ 400 070 376-400 4.7 Galvanized Steel 70
Elbow Hoop TGQ 425 070 401-425 4.9 Galvanized Steel 70
Elbow Hoop TGQ 450 070 426-450 5.1 Galvanized Steel 70
Elbow Hoop TGQ 475 070 451-475 5.4 Galvanized Steel 70
Elbow Hoop TGQ 500 070 476-500 5.6 Galvanized Steel 70
Elbow Hoop TGQ 525 070 501-525 5.8 Galvanized Steel 70
Elbow Hoop TGQ 550 070 526-550 6.0 Galvanized Steel 70
Elbow Hoop TGQ 575 070 551-575 6.2 Galvanized Steel 70
Elbow Hoop TGQ 600 070 576-600 6.5 Galvanized Steel 70
Elbow Hoop TGQ 625 070 601-625 6.7 Galvanized Steel 70
Elbow Hoop TGQ 650 070 626-650 6.9 Galvanized Steel 70
Elbow Hoop TGQ 675 070 651-675 7.1 Galvanized Steel 70
Elbow Hoop TGQ 700 070 676-700 7.3 Galvanized Steel 70
